26/35kV cable cold-shrink intermediate joint

Product Scope and Environment Scope: 26/35kV cable cold-shrink intermediate joint, suitable for voltage level 35kV. Cable nominal cross-sectional area: 25~500mm. Environment: The product uses imported high-elasticity special high-quality silicone rubber as material. The pollution level reaches IV, the electric stress control is geometric, the electrical performance is stable, and it is suitable for installation in various environments. The insulation level, current carrying capacity, long-term working temperature and short-circuit temperature performance all meet the technical requirements of the matching cable.

category: Cold shrink cable accessories

message contact

Detailed Description

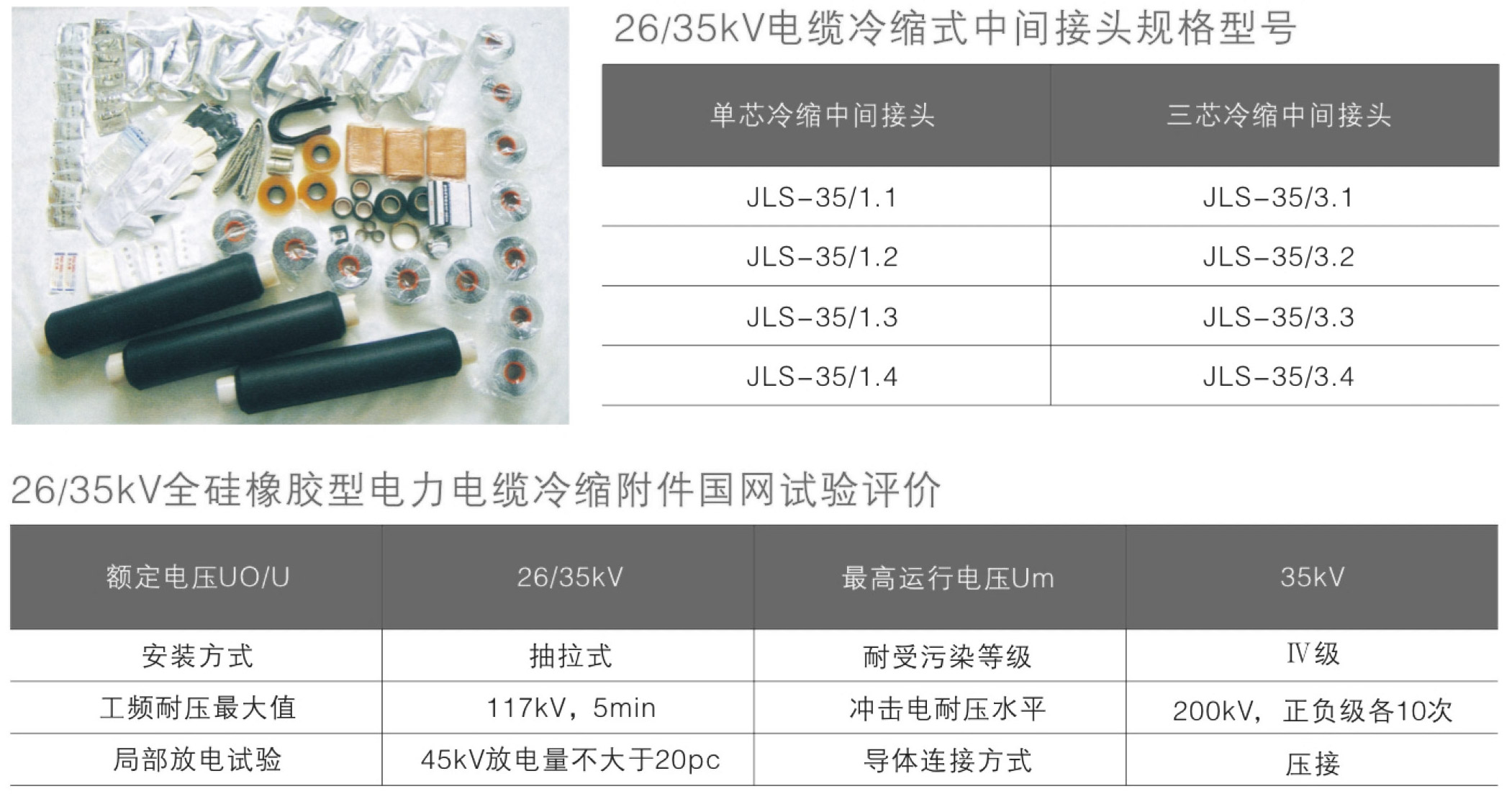

Product Model

Product Application Scope and Environment
Application Scope: 26/35kV cable cold-shrink intermediate joint, suitable for voltage level 35kV. Cable nominal cross-sectional area: 25~500mm.
Applicable Environment: The product uses imported high-elasticity special high-quality silicone rubber as the material. The pollution level reaches IV, the electric stress control is geometric, the electrical performance is stable, and it is suitable for installation in various environments. The insulation level, current carrying capacity, long-term operating temperature, and short-circuit temperature all meet the technical requirements of the matching cable.
The product has a novel structural design, excellent performance, and convenient installation. When in use, it only needs to remove the support to automatically retract and reset, and it is widely used in the fields of electricity, communication, military industry, metallurgy, coal mining, petrochemicals, etc.

keyword: 26/35kV cable cold-shrink intermediate joint

Product Attachments:
